LiFiMAX® Tablet HLMX-TAB-F1

Experience the cutting-edge LiFiMAX® tablet, a revolutionary Android device with an integrated LiFi-enabled case.


Step into the future with high-speed, secure, and radio frequency-free LiFi connectivity when in range of a Photonic Antenna (HLMX-ANT-F1).

With an additional battery for extended use, this tablet ensures a full day of autonomy while offering all the essential features of a traditional tablet (WiFi, Bluetooth, etc.). Don't miss out on this advanced technology!





LIFI ON THE MOVE

Having LiFi capabilities in tablets allows users to roam offices, venues, job sites covered by LiFi, easily and securely without the hassle of wires.

ALL-IN-ONE RUGGEDIZATION

Your full client capabilities right in your hands, compatible with your LiFiMax Network coming in a protective case.



ALWAYS CONNECTED

Maintain your critical connection and performance across your connection coverage area; no fear of interference or bad signal anymore.

MANAGE YOUR LIFI NETWORK

Network administrators can manage users, devices, configurations, and security features from anywhere LiFiMax is installed.

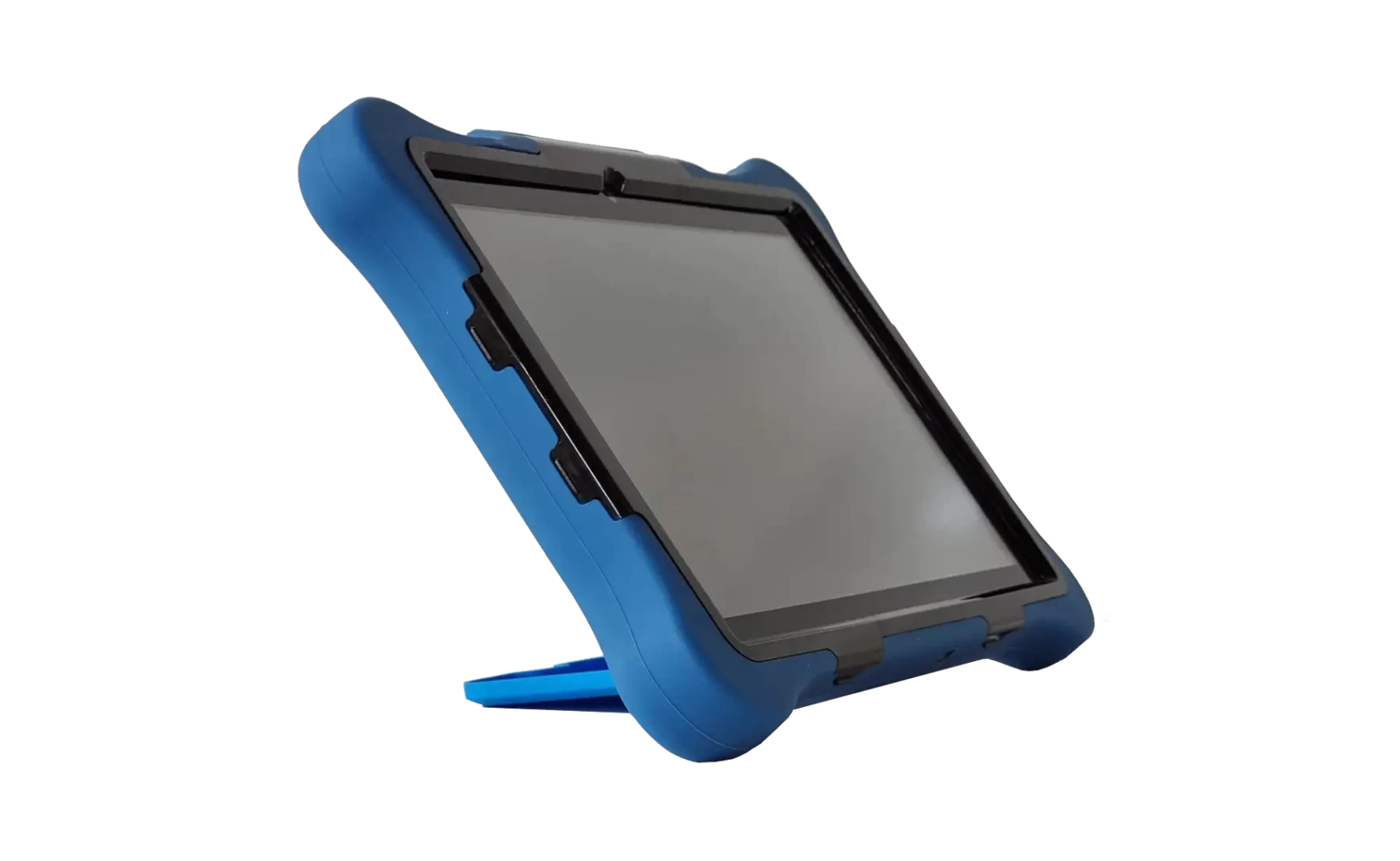

Your PhotonFi tablet


The LiFiMAXTab® tablet comprises an Android tablet integrated with a LiFi-enabled case. When positioned within the coverage area of a Photonic Antenna (HLMX-ANT-F1), users can access high-speed, secure, and radio frequency-free LiFi connectivity.


 LiFiMAX® Photonic Antenna

HLMX-ANT-F1

Product specifications


               Download in PDF


Transmission
  • Wavelength              LED 940nm (near IR)
  • Lifi standard             ITU-T G-9991
  • Downlink speed       215 Mbps PHY
  • Uplink speed            215 Mbps PHY
  • Transmission           Half duplex


Tablet specifications
  • CPU MTK6762 (-core 2GHz
  • RAM/Storage 4GB / 64GB
  • OS Android 11
  • Screen 10,1’’ 1920x1200
  • Speakers Built-in 2 x 1W


Other wireless interfaces
  • Wifi 802.11 a/b/g/n
  • Wireless GSM/Edge/LTE TDD & FDD
  • Bluetooth 4.2


Physical specifications
  • Dimension 28,15cm x 20,9cm x 3,8cm
  • Weight 1225g


What's in the box
  • One (1) LiFiMAX Antenna
  • One (1) cable to connect to LiFiMax AP
  • One (1) recess holder
  • One (1) surface mounted support

What do I need to install
  • Wired RJ45 LAN access
  • Ethernet crossover cable (provided)



Standards and Safety
  • CE Marking - RoHS
  • IEC/EN 6100 (EMC)
  • IEC 60825-1 and 60825-12 (laser class.)
  • IEC/EN 62471 (eye safety)
  • Protection class IP30


Interfaces
  • 1 USB-C port
  • 1 xTF Card reader
  • 2 SIM ports
  • 1 3.5mm stereo jack


Power
  • Power cons. Max. 1.7W with LiFi
  • Tablet battery 8000 mAh
  • LiFi battery 6000 mAh
  • Power supply Standard USB


Interfaces
  • High performance Silicon shell specially designed for Educational usage


Operation and storage conditions
  • Humidity tolerance              70% (RH)
  • Average ambient temp.     +/- 25°C
  • Operating temperature      -25 to +85°C
  • Storage temperature          -40 to +100°C


Ready to connect at the speed of light ?
