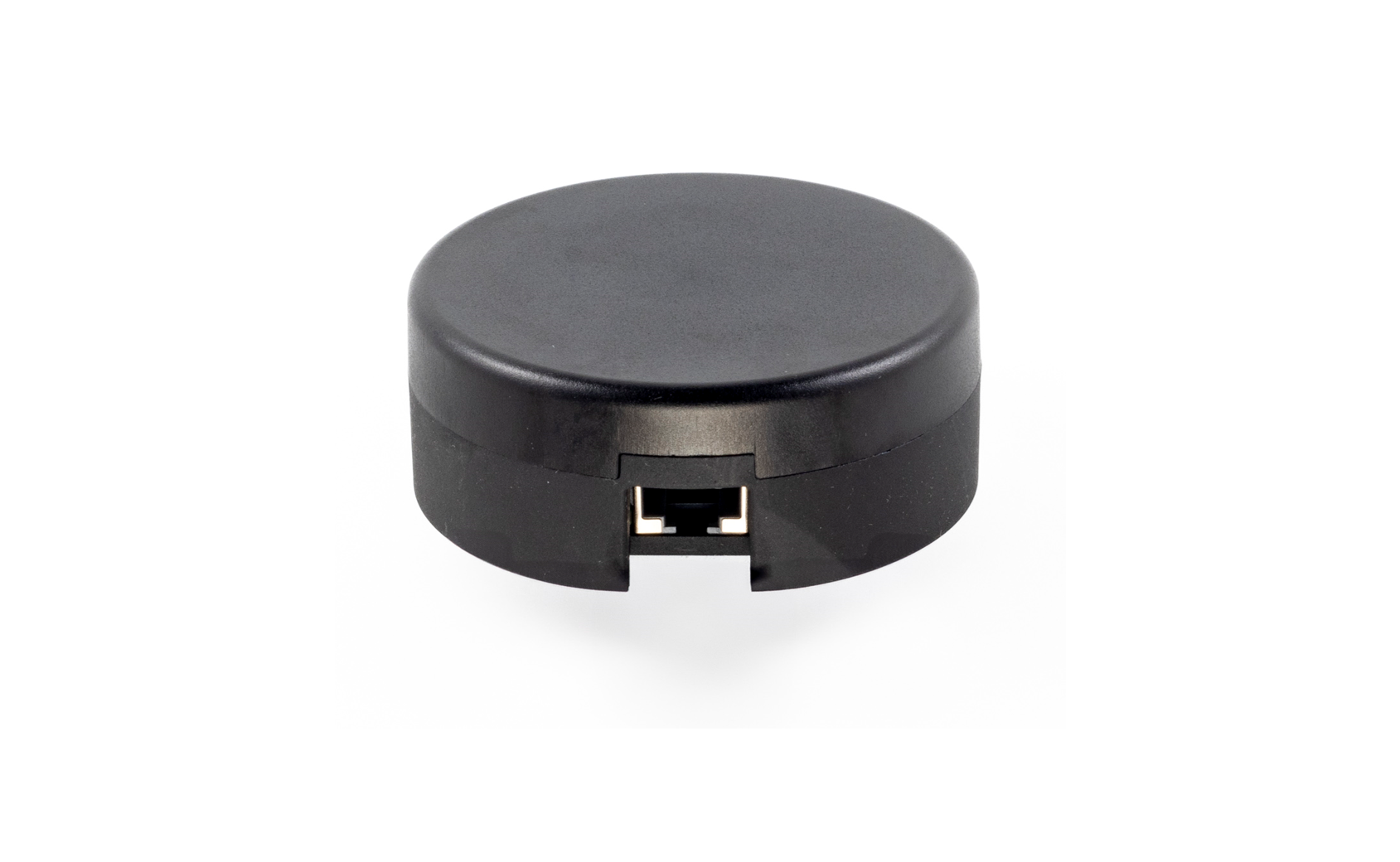

Photonic Antenna HLMX-ANT-F1
The cutting-edge LiFiMAX® Photonic Antenna transforms the signal transmitted by the Access Point (HLMX-APT-F1) into infrared light, ensuring unparalleled efficiency and security.
The range of coverage is determined by the quantity of connected antennas. These antennas transmit and receive infrared light at a wavelength of 940nm, which is not visible to the naked eye.
It interacts with the LiFiMAX® Dongle (HLMX-DON-F1) as soon as an optical link is detected.
ADDED SECURITY
Signal immune to jamming or hijacking. Paired with encryption and cybersecurity features, it provides the safest wireless network possible
SAFETY FIRST
The signal has been tested by independent authoritative labs for its total safety for health.
INTERFERENCE FREE
Using an untapped infrared spectrum to wirelessly connect without interference from any RF or radiation source.
EXPANDABLE
By combining Antennas and Access Points, users can expand a network to fit any size or need.
Your light cone of data
The Photonic Antenna takes the electrical signal from the Access Point and transforms it into an invisible-light signal. It also receives the infra-red signal from the LiFi client and translates it into an electrical signal sent to the Access Point. IR reception has been optimized thanks to patented lens technology.
Transmission
- Wavelength LED 940nm (near IR)
- Lifi standard ITU-T G-9991
- Downlink speed 215 Mbps PHY
- Uplink speed 215 Mbps PHY
- Transmission Half duplex
Interfaces
- 1 RJ45 cat 5 min for synchronization
- Eth. Crossover TIA/EIA 568A or B
Physical specifications
- Dimension 7.1cm diameter x 2.8cm height
- Weight 80g
What's in the box
- One (1) LiFiMAX Antenna
- One (1) cable to connect to LiFiMax AP
- One (1) recess holder
- One (1) surface mounted support
What do I need to install
- Wired RJ45 LAN access
- Ethernet crossover cable (provided)
Standards and Safety
- CE Marking - RoHS
- IEC/EN 6100 (EMC)
- IEC 60825-1 and 60825-12 (laser class.)
- IEC/EN 62471 (eye safety)
- Protection class IP30
Installation
- Plug and Play
- Hidden or surface mounting
Power
- Power cons. 3W
- Power supply from LiFiMax Access Point
Operation and storage conditions
- Humidity tolerance 70% (RH)
- Average ambient temp. +/- 25°C
- Operating temperature 0 to +70°C
- Storage temperature -40 to +100°C
