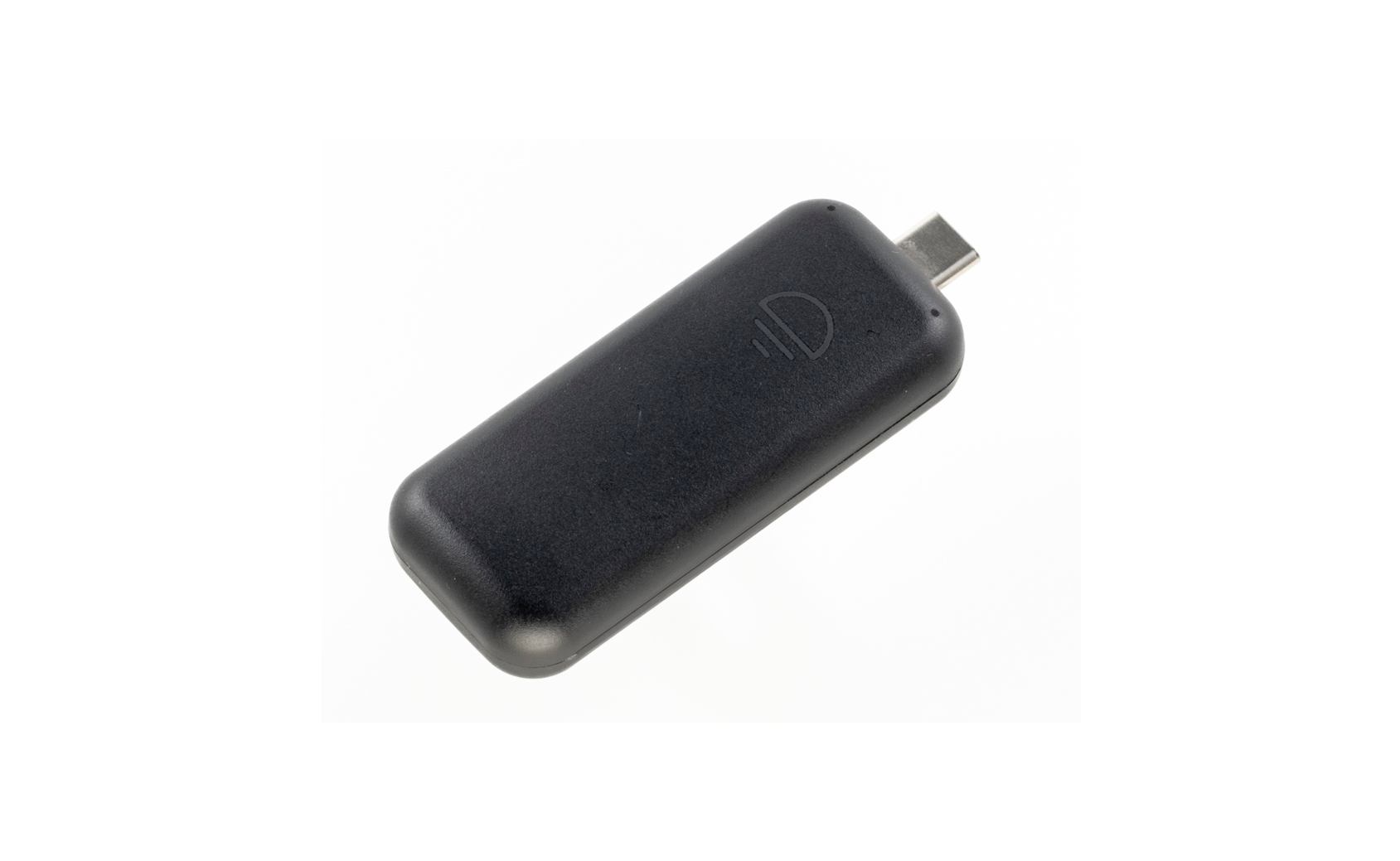

USB-C Dongle HLMX-DON-F1


The LiFiMAX® dongle (emittor/receiver) enables devices to connect to the LiFi network.


When a connected dongle is within the coverage area of a Photonic Antenna (HLMX-ANT-F1),  users benefit from a high-speed, secure connection without radio frequency waves.


Up to 16 receivers can be connected simultaneously to the same Access Point (HLMX-APT-F1).


ENABLES MOST DEVICES

The pluggable USB (C and A with an adapter) dongle provides LiFi capability to virtually any computing device.


UNIVERSAL

The LiFiMAX® dongle is compatible with most traditional operating systems (Windows 7 and above, MacOS, Linux, Android and iOS).


EASY TO SET UP

No driver is needed. Simply plug in the dongle, and your computing device is connected.

LIGHTING INDEPENDANT

Runs in any light conditions from dark to full light, whether artificial or sunlight.

It PhotonFies all your devices

Instantly upgrade your device to a LiFi enabled client with our USB dongle. No more dealing with driver installations - it's compatible with major Operating Systems like Windows, MacOS, Android, iOS, and Linux.


 LiFiMAX® USB Dongle

HLMX-DON-F1

Product specifications


               Download in PDF


Transmission
  • Wavelength              LED 940nm (near IR)
  • Lifi standard             ITU-T G-9991
  • Downlink speed       215 Mbps PHY
  • Uplink speed            215 Mbps PHY
  • Transmission           Half duplex


Security
  • Data encrypt.          AES 128
  • LAN control              VLAN management
  • Access control        IEEE802.1X


Interfaces
  • USB-C (USB 2.0 and 3.0 with adaptor)


Physical specifications
  • Dimension 7.4cm x 2.8cm x 1.5cm
  • Weight 40g


What's in the box
  • One (1) LiFiMAX USB-C dongle
  • One (1) USB-A adapter
  • One USB-C extension cable



Standards and Safety
  • CE Marking - RoHS
  • IEC/EN 6100 (EMC)
  • IEC 60825-1 and 60825-12 (laser class.)
  • IEC/EN 62471 (eye safety)
  • Protection class IP30


Installation
  • Plug and Play
  • Windows 7 and above, Linux, Android
  • MacOS, iOS


Power
  • Power cons. Av. 2.1W (Min. 1.7W – Max. 3W)
  • Power supply Standard USB

Operation and storage conditions
  • Humidity tolerance              70% (RH)
  • Average ambient temp.     +/- 25°C
  • Operating temperature       -25 to +85°C
  • Storage temperature          -40 to +100°C


What do I need to install
  • Nothing
